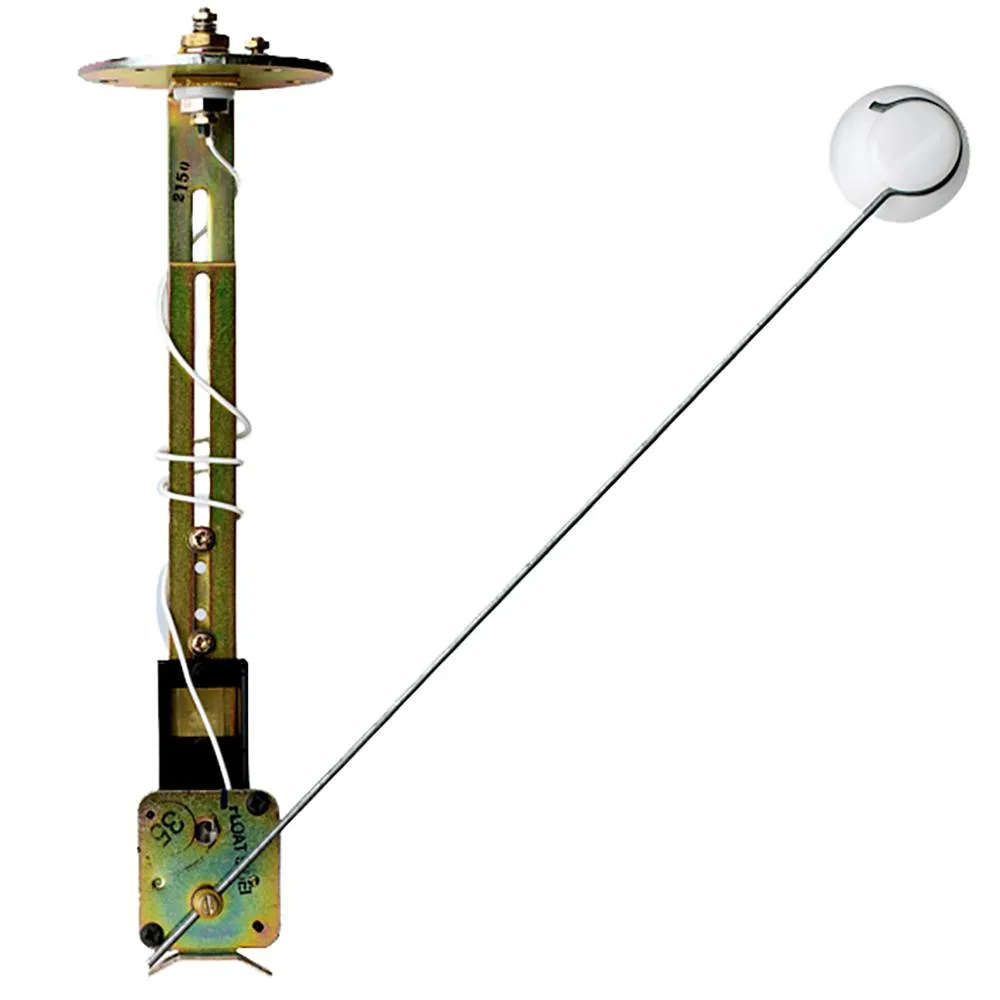

ALAS Adjustable Fuel Sender - 6 to 3/4-23" - 10-184 Ohm
VDO ALAS 12/24 V adjustable swingarm senders are engineered for severe-duty use. The sender main body features a plated steel construction to help eliminate damage caused by fuel slosh.
These units contain an SAE standard 5-hole metal mounting flange and body components, which can be adjusted from 6 in. to 23 in. tank depth, and are adaptable to right or left hand swingarm. For maximum durability, the wiper and thick film resistor are shielded (from fuel slosh) and the float arm stops to ensure the wiper remains in contact with its resistor board when tank is full or low.
Features:
- Connection - M4 Stud
- Voltage: 6-24V
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Color: Gold
- Box Dimensions: 4"H x 4"W x 19"L WT: 1.3 lbs
- UPC: 754059001036
