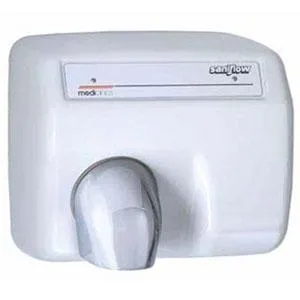

PRODUCT OVERVIEW
Long-lasting compact units with anti-vandalism features, minimum consumption and maintenance and free from vibrations and noise. This product is available with automatic infrared activation or manual activation and the casing comes in different materials and finishes
- Warm air hand dryer.
- Sensor operated
- Maximum robustness and power
- Vandal-proof
- Suitable for very high traffic facilities.
- 10 Year Warranty
- It normally goes along with a soap dispenser.
CERTIFICATES AND QUALIFICATIONS
UL comply with UL499 norm.
COMPONENTS AND MATERIALS
- Steel one-piece cover with white porcelain enamelled coating 5/64" (1,9 mm) thick.
Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench.
- Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting.
- Fire resistant plastic UL 94-VO fan scroll
- Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings
- Aluminum centrifugal turbine with double symmetrical inlet.
- Waved wire NiCr heating element that incorporates a safety thermostat
- Nozzle in chrome plated zamak, 22 _ thick
- Adjustable (6-10") IR electronic detection sensor.
OPERATIONS
UL comply with UL499 norm.
SPECIFICATIONS
Surface mounted vandal resistant hand dryer shall be fabricated with one-piece 5/64" thick metal sheet cover,
with glazed porcelain coated. The back base shall be aluminum, 1/8" thick and with 4 holes for wall mounting.
Cover shall be equipped with a chrome-plated 360° revolving nozzle for hand and face drying. The dryer shall
be activated through an infrared electronic sensor and shall automatically turn off when hands are removed.
Motor shall be 1/3 hp, 5,500 r.p.m. , universal type, with a 4A fuse with sealed, self- lubricated ball bearing; The
waved wire NiCr heating element should incorporate a thermal limiter which will switch off by a temperature of
176 °F (80°C). The fan should be an aluminum centrifugal turbine with double symmetrical inlet, and the fan
scroll shall be made of a fire resistant plastic UL 94-V0. Dryer shall deliver 290 CFM of air at 128 °F (53 °C) and
5,512 LFM velocity during user controlled drying cycle. The dryer shall have a total power of 1,850 W with a
consumption 16A. Noise level should be 70 dB. Overall dimensions shall be 11"W x 9-3/4"H x 8-1/4"D. Unit
shall be UL listed, and /or VDE approved and CE marked.
TECHNICAL SPECIFICS
450
- Steel one-piece cover with white porcelain enamelled coating 5/64" (1,9 mm) thick.
Cover fixed to the base by means of 2 vandal-proof lock screws and lock with special saniflow ® key wrench.
- Base in aluminum, 1/8" (3 mm) thick, with 4 x 5/16" (8 mm) holes for wall mounting.
- Fire resistant plastic UL 94-VO fan scroll
- Motor, universal, 5,500 rpm, B class, included a 4 A fuse with sealed and self-lubricated ball bearings
- Aluminum centrifugal turbine with double symmetrical inlet.
- Waved wire NiCr heating element that incorporates a safety thermostat
- Nozzle in chrome plated zamak, 22 _ thick
- Adjustable (6-10") IR electronic detection sensor.
