Product Properties

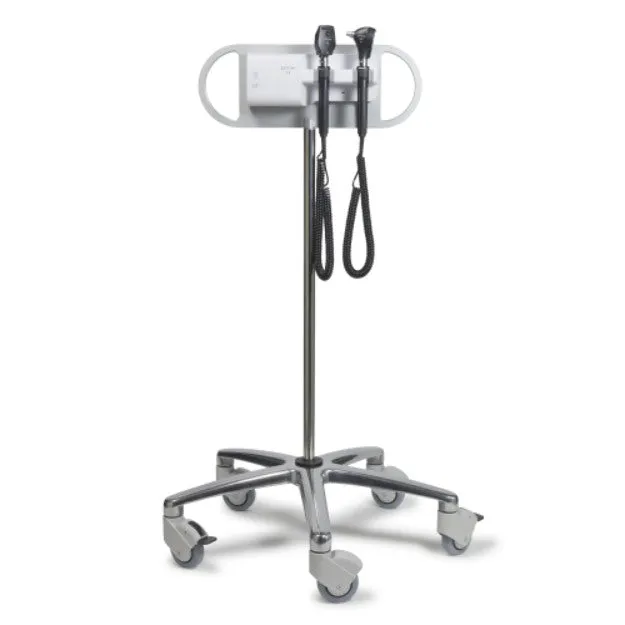

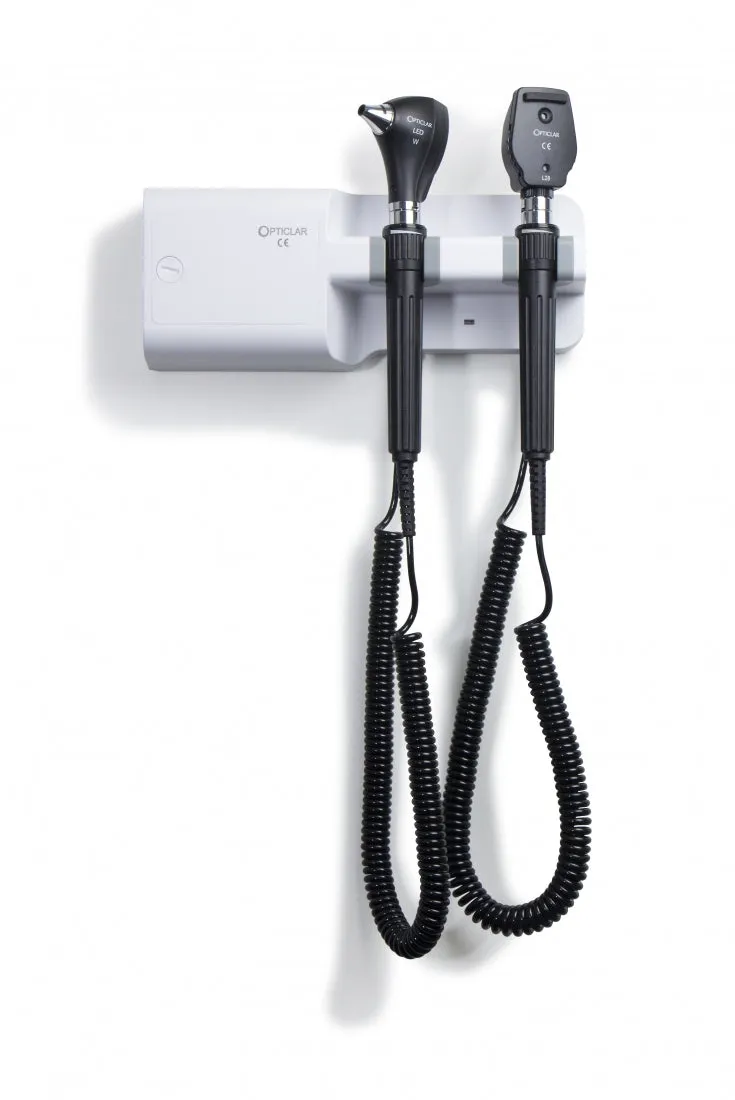

S2 Practice wall mount or trolley station
Wall or trolley mounted diagnostic station, provides mains power for the VisionMed Practice range of instruments. Available in single-bay or twin-bay configurations with fixed cord handles with a working radius of more than 3 metres. The smooth design and rounded profile is hygienic, easy to clean and minimises dust traps.

• C Cell or mains operation
• Auto on/off
• Out of cradle auto off after 5 minutes
• Rheostat brightness control on each handle
• Easy to assemble and install
• Available in wall, rail, mobile stand and pole mount options

Additional accessory bays available:

• Accessory storage box / tip dispenser
• Infra-Red thermometer holder, for Braun, AW or other thermometer
• BoSo Nova large dial sphygmomanometer

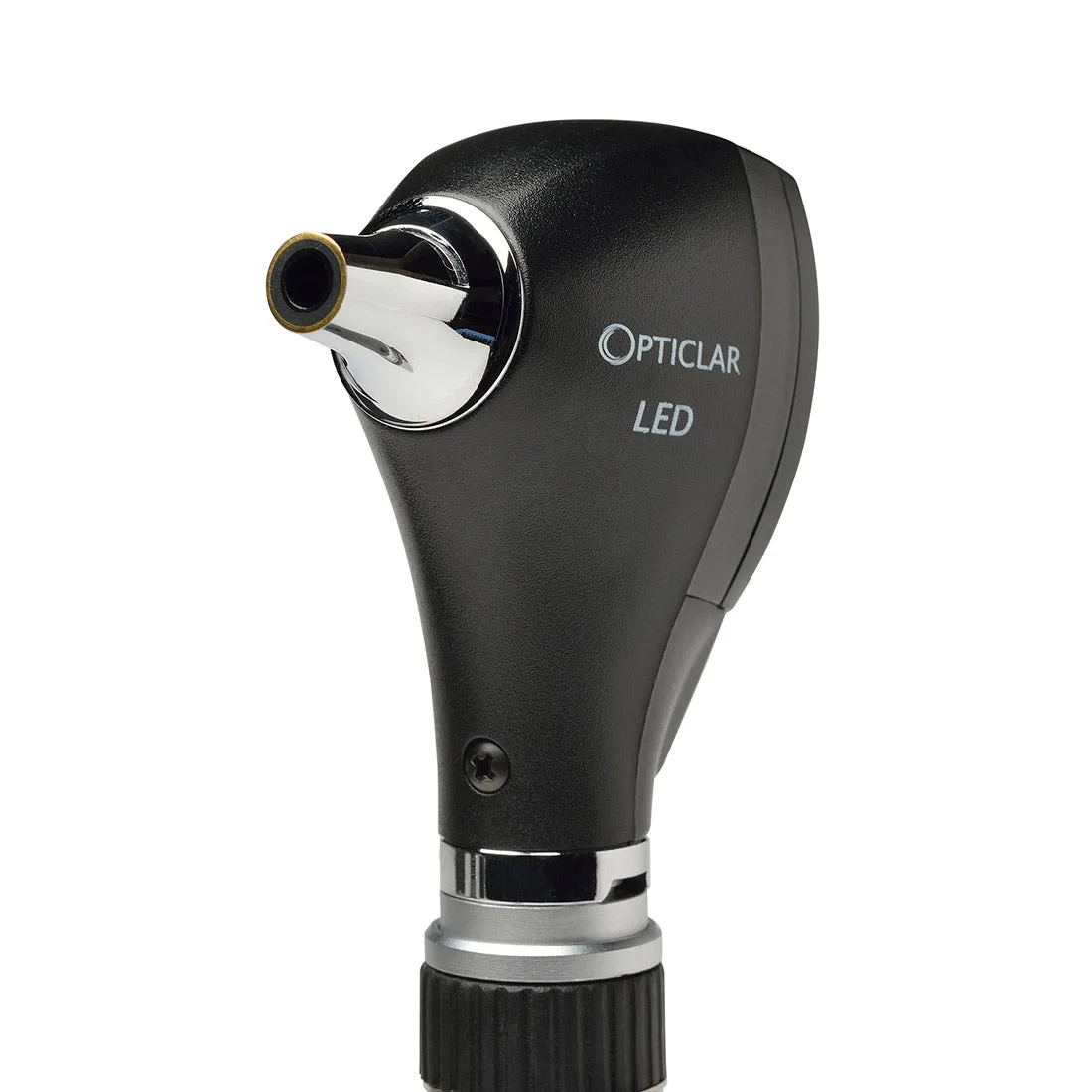

S1/2 Practice LED Fibre Optic Otoscope

• TrueTone™ LED illumination
• Distal fibre optics gives cool light to examination site with no reflections and provides excellent view of the tympanic membrane

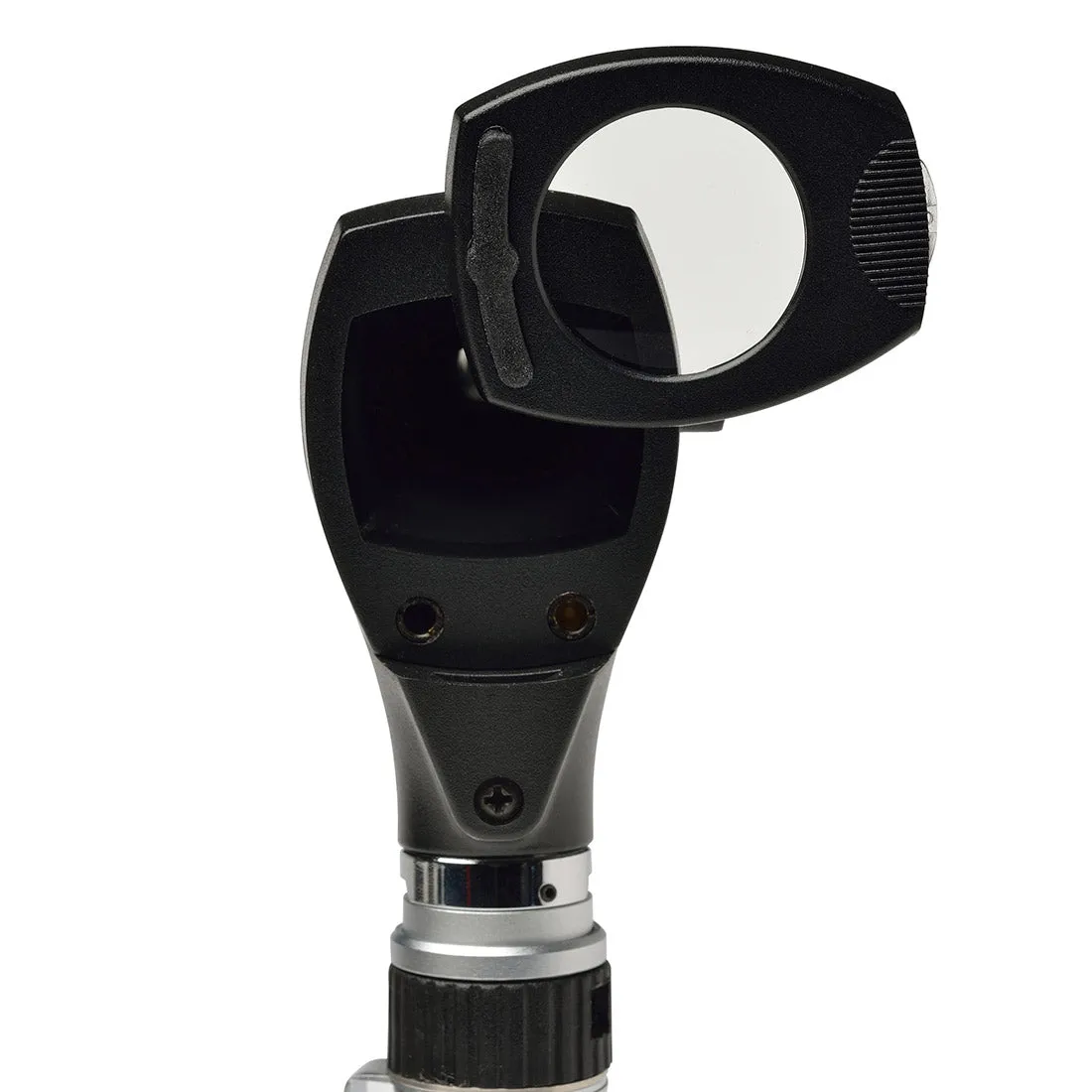

• Swivel viewing lens cannot be lost and is guarded on lower edge from potential breakage
• 3x magnification from scratch proof window lens
• Wide angle viewing window for easy instrumentation under magnification
• Sealed system allows for pneumatic otoscopy
• Multi-voltage system, works with all power sources
• Disposable tips in 2.5mm or 4.0mm diameters
• Head available with German tip fitting or American style tip fitting. Please specify at time of ordering, otherwise American tip fit is supplied as standard

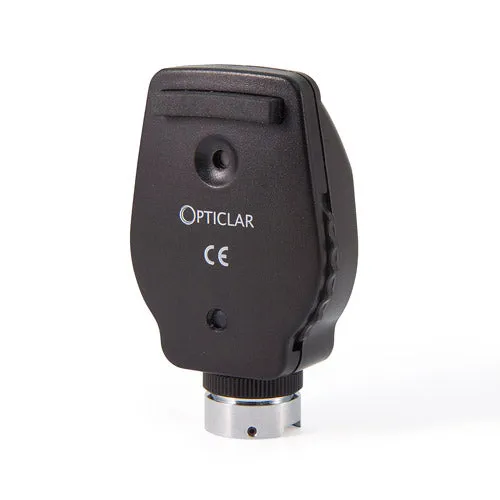

L28 Practice Ophthalmoscope

• Superior miniaturised optics facilitates entry into even very small diameter pupils
• Polarising filter practically eliminates corneal reflex and can be used on all apertures
• Sealed optics for long life and reduced running cost
• 28 lenses from -25 to 40d
• Independently selectable red free filter for use on all apertures provides increased contrast
• 18 filter/aperture combinations for increased diagnostic capabilities
• Cobalt blue filter to help detect corneal abrasions

Key Features

• Mains powered
• 3 mtr cord handles
• LED illumination: > 10,000 hours
• LED guarantee: 10 years
• Auto on/ off
• Out of cradle auto off after 5 minutes

Includes:
S2 Practice Wall or trolley station
S1 Practice Fibre Optic Otoscope
L28 Practice Ophthalmoscope
