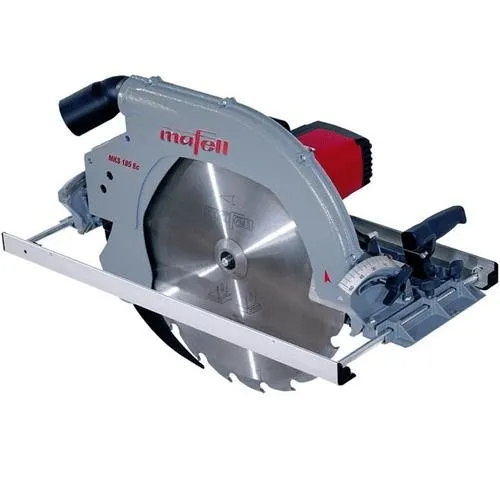

In a class of its own: heavy-duty 3000 watt (3.8 hp) motor for extreme 185 mm (7 5/16 in.) cutting performance!

The saw's handling and behaviour are refined by smooth starting, constant speeds under load, speed reduction and overload protection.

The easy-to-use stop system, the low noise emission and the remote-controlled retractable knife guard make your work much easier. The very smooth-running height adjustment with its clearly legible scale and an effective brake also ensure perfect cutting results and optimum operator safety.

With CUprex, the high-performance motor
Unique ratio between maximum stability and minimum weight.
High quality standard means lower machine costs and longer service life.
Constant cut display for 0° - 60° - due to exact centre of rotation, which is on the underside of the base plate.
Cross-cutting and rip cuts
Bevel cuts up to 60°
General joining work
Compatible materials include solid wood, laminated beams, insulating materials, composite boards

Specification:
Cutting depth : 105 - 185 mm
Cutting depth at 45° : 74 - 131 mm
Cutting depth at 60° : 53 - 93 mm
Tilt range : 0 - 60 °
Nominal no-load speed : 1400 - 1700 1/min
Weight : 19 kg
Nominal input : 3000 W
Universal-motor : 230 V / 50 Hz
Cutting speed : 30,6 - 37,7 m/s

Includes:
1 x Allen key 6 mm; Ref. No. 093081
1 x TCT saw blade 450 x 2.5/4.2 x 30 mm (17 11/16 in.), AT, 20 teeth; Ref. No. 092536
1 x Parallel guide fence
1 x Mains cable 10 m (32.8 ft); Ref. 087612
