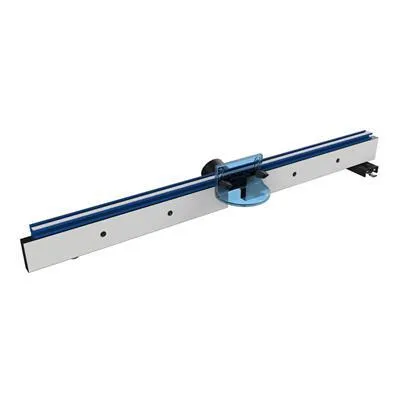

Multi-Purpose, Self-Squaring Router Table Fence System
- T-square style self-squaring carriage
- Rugged anodized-aluminum fence
- Independent sliding fence faces
- Precision measuring system with micro-adjust
- Jointing feature with jointing rods
Description
Unmatched Versatility, Incredible Adjustability

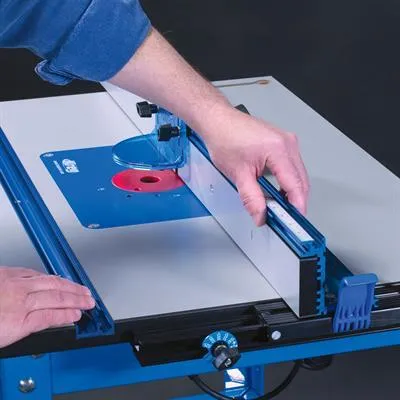

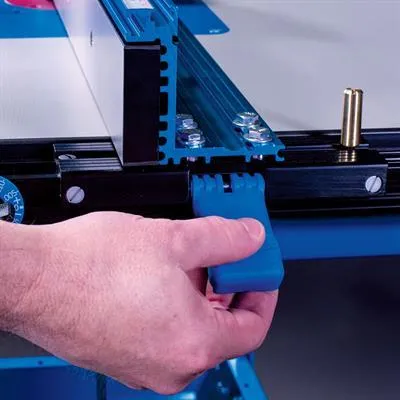

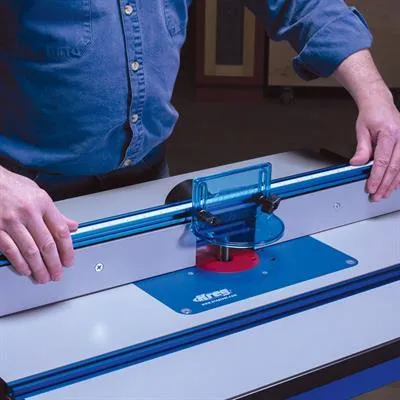

This anodized-aluminum fence features a table saw-style T-square adjustment system that ensures the fence will always stay parallel to the miter gauge slot. The fence adjusts easily with just one hand and locks firmly in place with dual locks: A large paddle lock on the infeed end, and a quarter-turn lock on the outfeed end that prevents fence deflection.
Unparalleled Accuracy

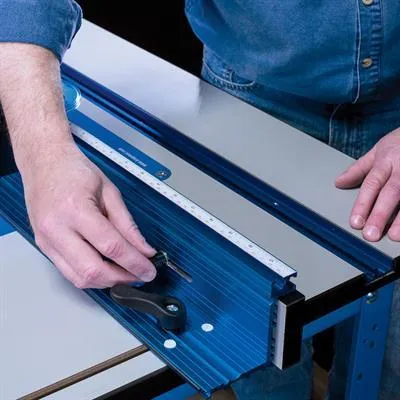

A magnified measuring system with an adjustable measuring scale allows accurate setup with any bit. The included Micro-Adjuster allows you to dial in precision measurements exactly.
Independent Sliding Fence Faces

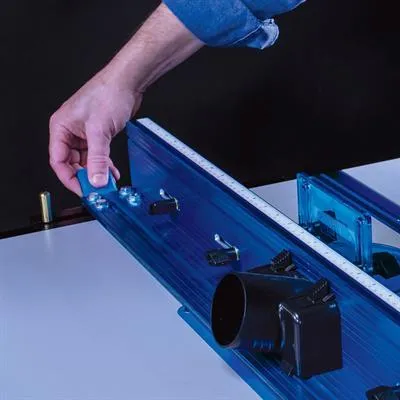

Independent sliding fence faces can be positioned exactly where needed to provide workpiece support close to the bit, and to maximize chip collection into the fence’s built-in dust port.
Built-In Jointing Feature

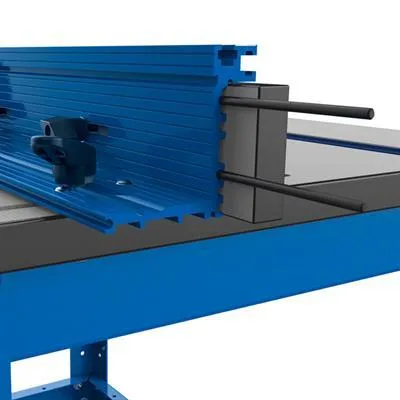

Two jointing rods come included in this system. Just slide them into position behind the outfeed fence face, and the fence doubles as a jointer for putting perfect edges on boards.
Universal Mounting
Get real precision on any router table. A single-side, universal mounting design allows the fence to be securely attached to most router table tops from 3/4" to 11/2" (19-38mm) thick.

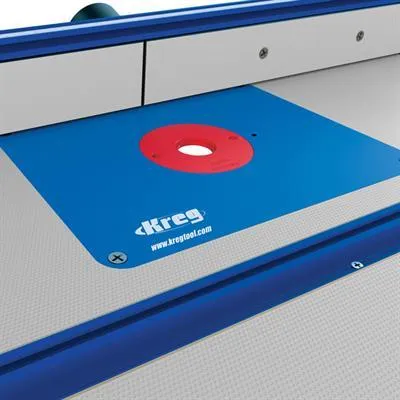

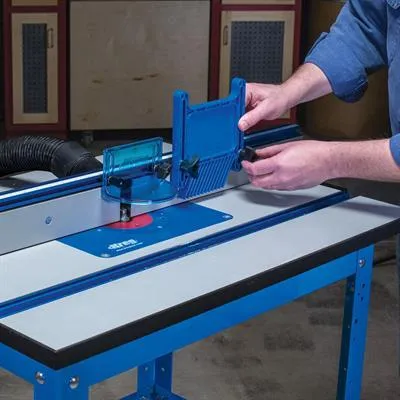

Create a Custom Router Table System
Create a custom router table system to meet all of your routing needs with the Kreg and . Or, create your own system with a shop-made table top and stand.
Note: Router bit hole must be located 16" (406mm) from the right side of the table. Fits 1"-thick (25mm) tables without modification. Thinner or thicker tables may require modification.
California Residents:
Specs
| Fence Material | 36" (914mm) heavy-duty anodized aluminum |
| Fence Faces | Independent sliding faces with laminate surface and dual locking bits |
| Adjustability | Innovative, self-squaring T-square style |
| Mounting Capability | Tables between 3/4" (19mm) and 11/2" (38mm) thick |
| Jointing Depth Adjustments | 1/16" (1.5mm) and 1/32" (0.8mm) |
| Includes | Anodized-aluminum fence body, adjustable faces, T-square style saw carriage, micro-adjust wheel, jointing rods, measuring tape, dust-collection port, bit guard, assembly hardware, and owner’s manual. |
