KMC - E-BIKE (BOSCH GEN 4) CHAINRINGS

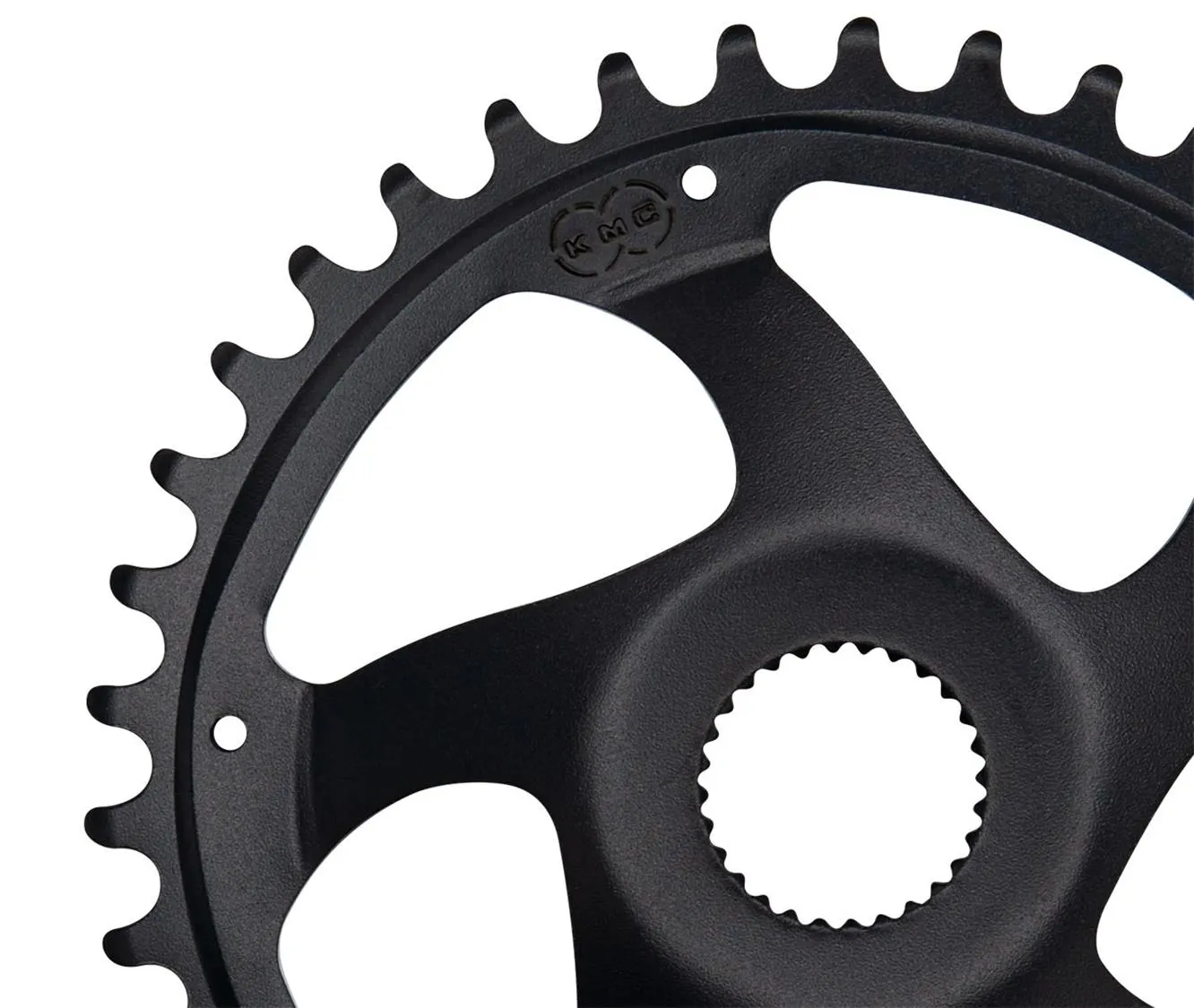

A drive is efficient when chain and chainring work together perfectly. The most important factor here is an optimum form and force fit, which is created by a minimum of play between the drive components. Precision is the central KMC issue in the development of advanced drive components. For the Bosch Gen4 chainrings, for example, they designed a completely new tooth profile: It prevents the chain from falling off without forcing it onto the teeth. The result is the perfect balance of power and smooth running with a long service life.

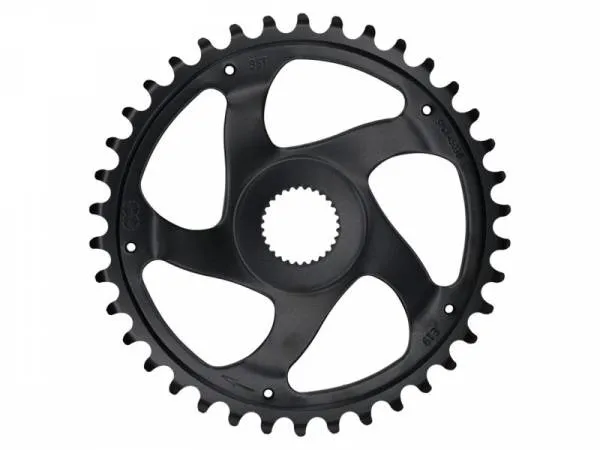

AFSG4-34T
Chainring Bosch G4 Front 34T, CL 52mm, Black, 11/128"
- 34 teeth
- Size: 1/2" X 11/128"
- 52mm Chainline
- Treatment: Hardened Chromoly steel
- For Bosch 4 Systems
- Direct Mount; 9,0mm offset
- Perfectly matched to KMC chains - e1, e12, e11, e10, e9 and e8 chains
- Maximum efficiency which saves battery
- SHI-12 spd compatible
​AFSG4-38T
Chainring Bosch G4 Front 38T, CL 50mm, Black, 11/128"
- 38 teeth
- Size: 1/2" X 11/128""
- 50mm Chainline
- Treatment: Hardened Chromoly steel
- For Bosch Gen4 Systems
- Direct Mount; 7,0mm offset
- Perfectly matched to KMC chains - e1, e12, e11, e10, e9 and e8 chains
- Maximum efficiency which saves battery
- SHI-12 spd compatible
