Our preferred invertor for running power to all power points in a RV.
This is thoroughly proven unit and we have never had reports of one failing to run any appliance including all air-cons in a caravan.
With in inbuilt transfer switch and its own RCD to maximize safety.
Key Features:
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button

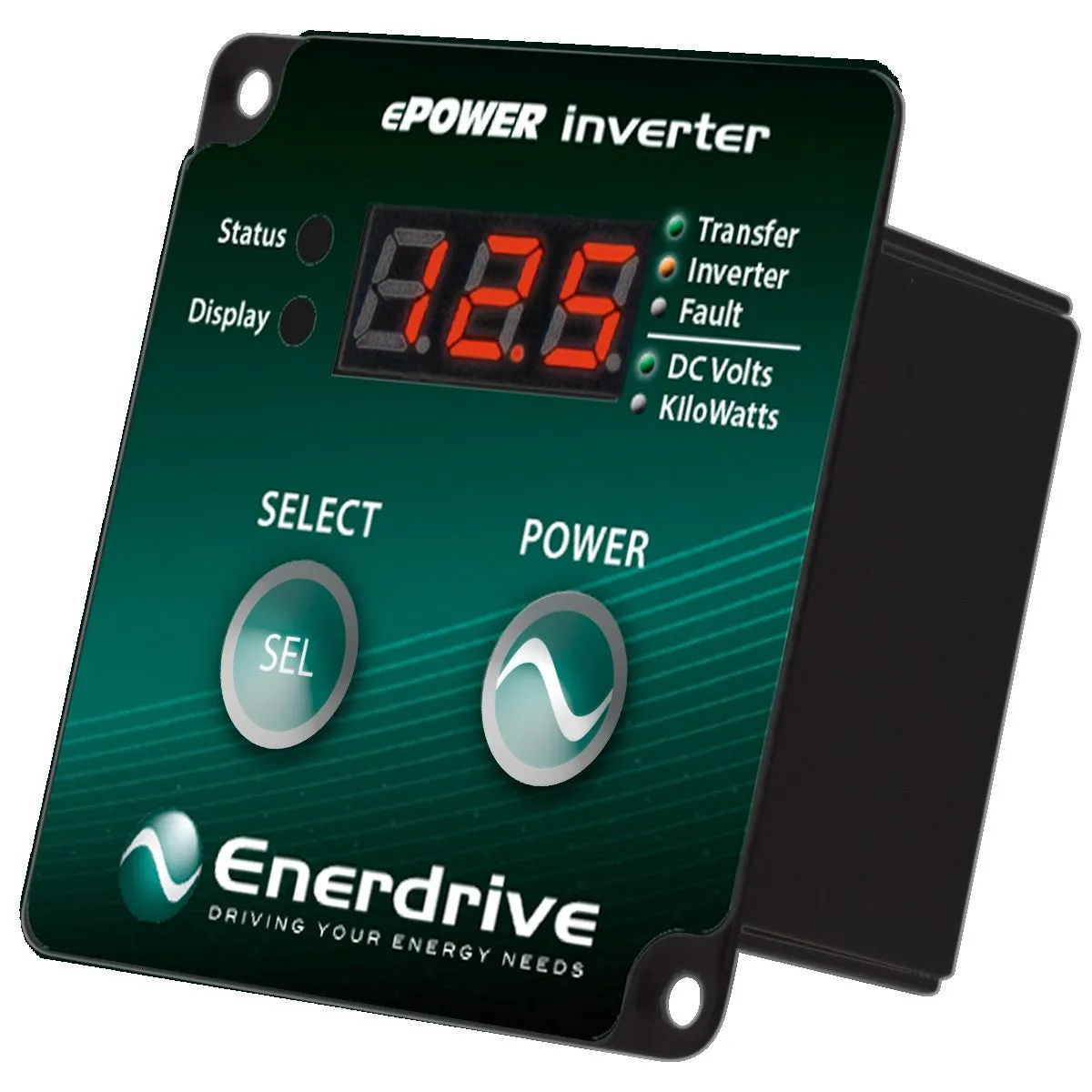

- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
| Model – Description | EN1226S-X |
| AC Output Power | 2600W |
| AC Output Current | 11.3A |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | Sinewave ( 3% THD) |
| Nominal DC Input Voltage | 12.5 VDC |
| No Load battery draw | 1.5 ADC |
| DC Input Voltage operating range | 10.5 – 15.5 VDC |
| Under Voltage Alarm | 11.0 / 12.1 VDC |
| Under Voltage Alarm Recovery | 11.3 / 12.3 VDC |
| Under Voltage Shutdown | 10.5 / 11.8 VDC |
| Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC |
| Over Voltage Shutdown | 15.5 VDC |
| USB Port | 5V, 750 mA |
| AC Transfer Switch | |
| Transfer Time | 30 ms |
| Transfer Relay Rating | 16A (resistive load) |
| AC Input socket IEC-C20 | 16A max |
| AC Output socket IEC-C19 | 16A max |
| AC Output Front GPO | 10A max |
| Safety and Environmental | |
| Conformance | All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16 |
| EMI / EMC | CE EMC: EN/IEC 62040-2 category C1 |
| Agency Markings | RCM , CE |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5-90% non-condensing |
| Operating Altitude | Up to 3000 meters above sea level |
| Weights and Dimensions | |
| Weight | 7.0 kg |
| Dimensions (W x L x H) | 560x230x115 mm |
| Warranty | 3 Years |

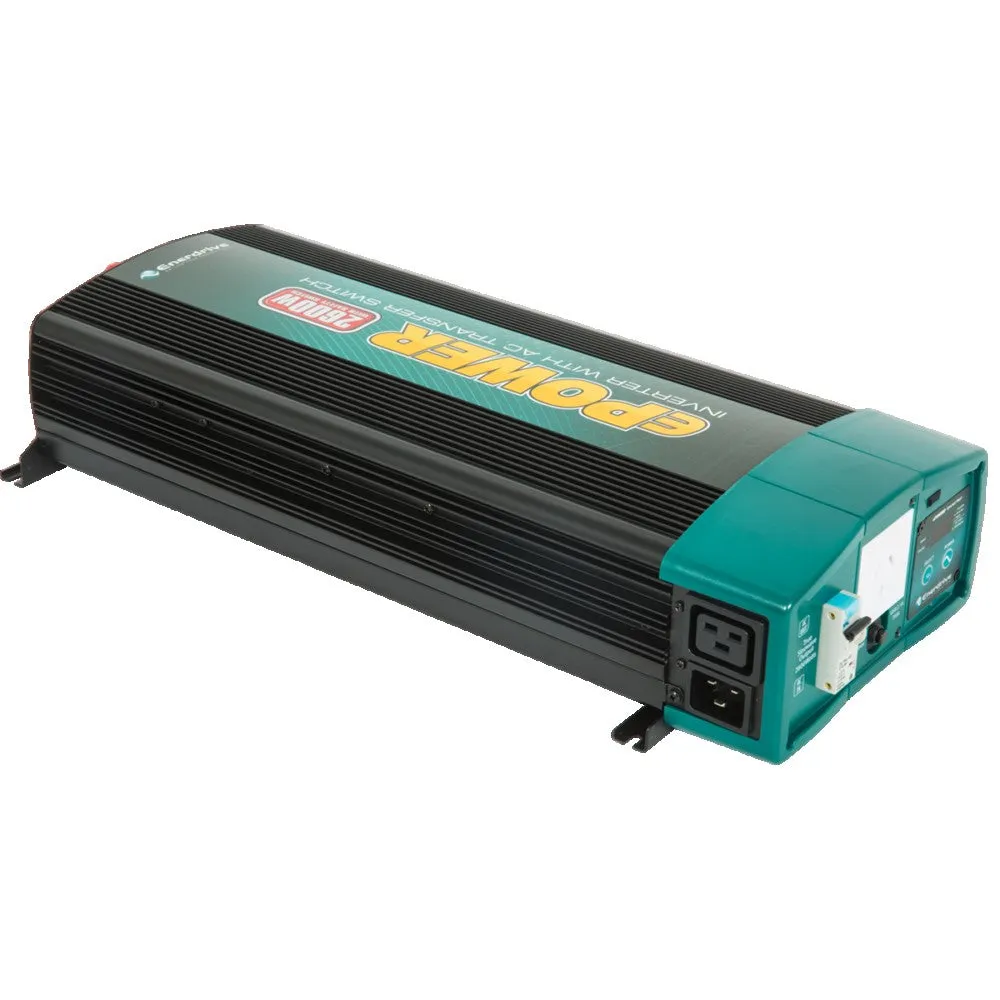

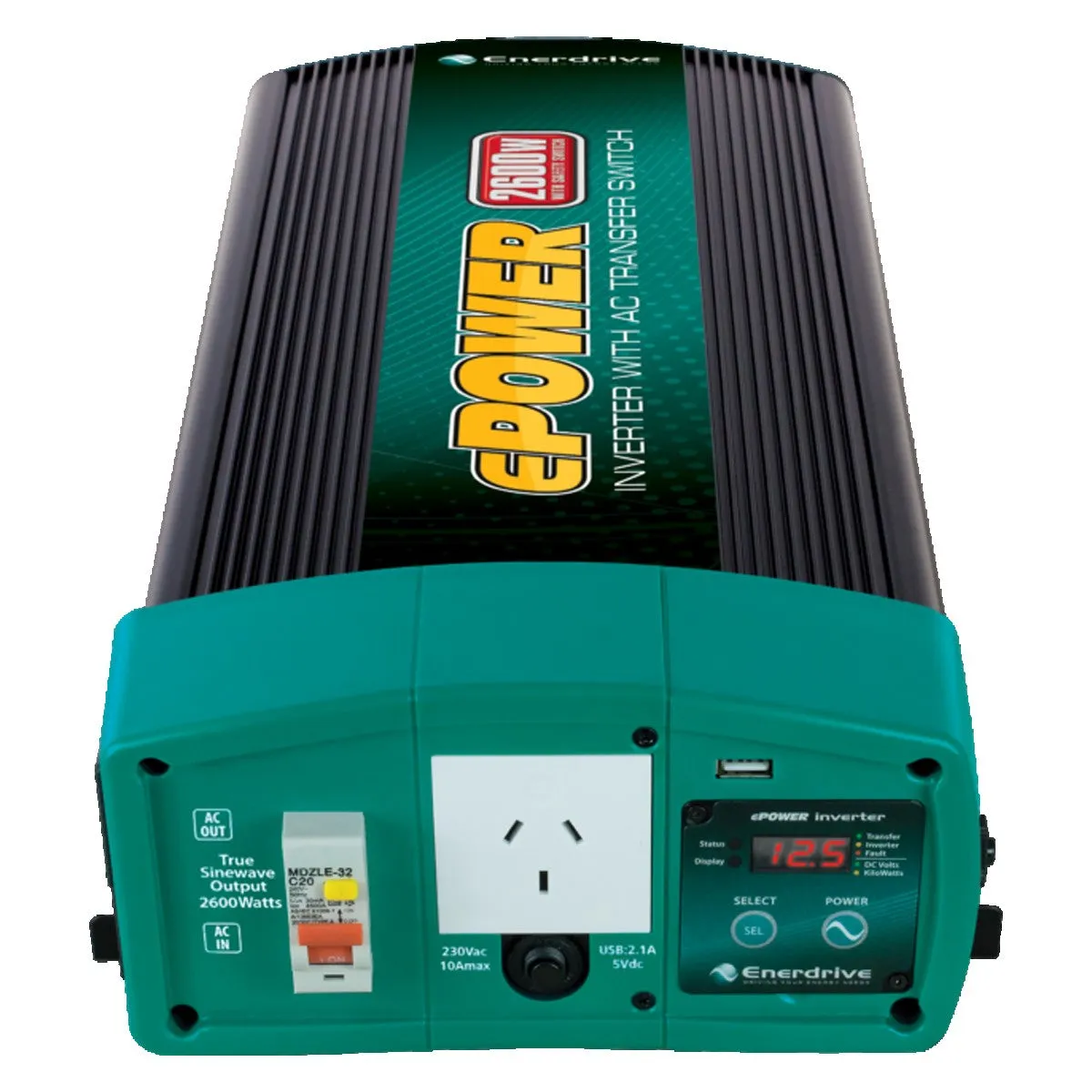

ePOWER 2600W True Sine Wave Inverter with AC Transfer Switch and Safety Switch
Enerdrive's ePOWER 2600W Inverter is a professional-grade, high-quality device that utilizes the latest power conversion technology to deliver clean and energy-efficient true sine wave AC power from a DC source. It comes with an integrated AC Transfer Switch that permits for a smooth transition of AC power between Mains/Generator and Inverter and a RCD Safety Switch that ensures safety and security in just 0.03 seconds. Able to accommodate 2600W, the ePOWER is a great option for powering tools, electronics, and appliances. Additionally, the inverter is backed by a 3-year warranty.
